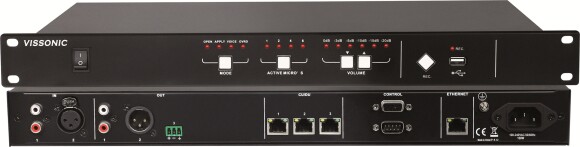

VIS-DCP1000

Item no.: 103465754
Category: Conference Systems
Manufacturer:

Digital control center for wired conference systems. Basic model.

1.499,00 €

incl. 19% VAT ,

Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

units

note_phoenix

VIS-DCP1000

The VIS-DCP1000 is a digital control center for wired conference systems (basic model).

The VIS-DCP1000 meets all the requirements of a modern control center.

It is easy to install and can be controlled either directly on the device itself or with software via PC.

A CAT5e network cable transmits 64 audio channels and additional control information. The system detects all connected microphone units and assigns each unit a unique address (ID) to avoid network conflicts.

The hot-plug function allows microphone units to be added or removed during active operation.

The ability to set up the wired network as a closed loop increases reliability.

The AUDIO-LINK ring network technology guarantees interference-free signal transmission.

Optional VIS-EXM conference extension units increase the maximum number of usable wired conference units to up to 5,200.

Setup and conference operation are also possible without a connected computer.

The control center enables audio recordings directly to a USB flash drive via the integrated USB interface.

The VIS-DCP1000 is equipped with 2 audio inputs with XLR and RCA connectors for feeding in external audio sources, and 3 audio outputs with XLR, RCA, and Phoenix connectors for signal output to external devices, e.g., active speakers, external recording devices, or for implementing various sound zones or foreign language channels.

Also on board are an Ethernet TCP/IP network interface for connecting the control unit to an existing network or directly to a PC and two RS232 interfaces for connecting to media control or for camera control.

The VIS-DCP1000 offers numerous setting options directly on the control panel or via software for:

Microphone unit activation
- "OPEN" mode: Each microphone unit will be activated as soon as the talk button is pressed.
- "APPLY" mode: Pressing the talk button on a microphone unit initiates an activation request. The microphone on the microphone unit lights up green, and the chairman's microphone unit indicates that an activation request is pending. The chairman can accept or reject the request. If the chairman accepts the activation request, the microphone on the affected microphone unit lights up red, and the microphone is active.
- "VOICE" mode: As soon as a microphone unit is spoken to loudly enough, the microphone is activated.
- "OVERRIDE" mode: Pressing the talk button on a microphone unit activates the microphone. At the same time, the previously active microphone unit is deactivated.
Adjusting the volume of the microphone units and the external output
Number of simultaneously activated microphone units on 1, 2, 4, 6 microphone units that can be activated simultaneously

Compliant with standards IEC 60914 and GBT 15381-94.

note_phoenix

Specials

Full Digital Networked Conference Main Unit

Simple, intuitive operation, requires no extensive training

Hot-plug function: Microphone units can be added or removed during operation

AUDIO-LINK ring network technology for interference-free signal transmission

Setup and conference operation possible even without a connected computer

Control of the conference center directly on the device or via network software

Numerous setting options directly on the control center or via software (microphone unit activation, volume, activatable microphone units and much more)

Excellent sound quality

48K sampling rate

Frequency response from 20 Hz to 20 kHz

Audio recordings via the integrated USB interface directly to a USB flash drive

Adjustable microphone sensitivity

2 audio inputs with XLR and RCA

3 audio outputs with XLR, RCA, and Phoenix connectors

Internal switching power supply 110 V - 240 V AC

Compliant with IEC 60914 and GBT 15381-94 standards

Product safety information

Manufacturer information:

VISSONIC Deutschland ist eine Abteilung der MIPRO Germany GmbH
Kochersteinsfelder Str. 73
Baden-Württemberg
Hardthausen, Deutschland, 74239
info@vissonic.de
https://www.vissonic.de

Item information	Value
TECHNOLOGY:	Digital
TYPE:	Central unit
BRAND:	VISSONIC
MODEL:	wired
SERIES:	VISSONIC CLASSIC-D series

note_phoenix

Technical Details

Power Supply	110 V ~ 240 V AC @ 50/60 Hz
Standby Power Consumption	12 W
Maximum Power Consumption	150 W
Power Supply for Intercom Units (POE)	48 V DC
RS-232 Interfaces	1 x 9-pin Sub-D Female and 1 x 9-pin Sub-D Male
Ethernet Connection	RJ45
Frequency Response	20 Hz ~ 20 kHz
Total Harmonic Distortion (THD)	<0.05%
Channel Separation	> 85 dB
Signal-to-Noise Ratio (S/N)	> 96 dBA
Dynamic Range	> 94 dB
Housing	Standard 19" Rack Mount Housing
Dimensions (W x D x H)	483 x 260 x 43.6 mm
Weight	3 kg
Color	Black

note_phoenix

Downloads

Full Digital Wired Entry-Level
Conference Units / VIS-DCP1000 Data sheet (1.0 MB)

VIS-DCP1000 Technical Drawing (0.9 MB)

VIS-DCP1000 Diagram (0.08 MB)
