VIS-MAWLGE-T

Item no.: 103466859
Category: Conference Systems
Manufacturer:

Digital, wireless 5G WiFi touch screen microphone unit with 4.3" LCD display (microphone to be ordered separately). With language selection license.

1.149,00 €

incl. 19% VAT ,

Manufacturers RRP: 1.169,00 €

(Save 1.71%, i.e. 20,00 €)

Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

units

note_phoenix

VIS-MAWLGE-T

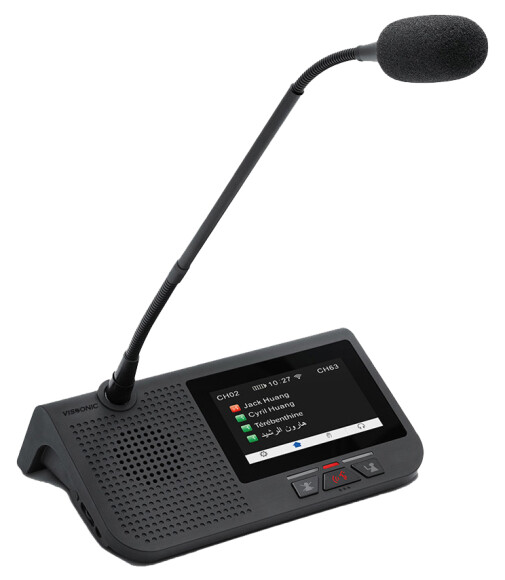

The VISSONIC VIS-MAWLGE-T is a digital, wireless 5G WiFi touch screen microphone unit with 4.3" LCD display (microphone available separately).

Version with language selection license.

The touch screen microphone unit is clearly designed, very stable and robust. By integrating the microphone station into the digital AUDIO-LINK network, all functions of the conference system can be displayed and operated on the 4.3" display.

The intercom station can be set as a presidential, delegate or VIP conferenve unit according to the respective conference situation.
Additional functions such as voice dialing can be activated via software modules without having to change the hardware.

Usually the conference unit is used and operated by one user. However, it can also be set using the software module so that two users can use the conference unit together, but can set different foreign languages on the headphone output on the left and right or can also take part in votes separately.

For users with hearing difficulties, Bluetooth transmission can be activated via a software module to enable voice output on Bluetooth headphones.

The VIS-MAWLGE-T includes the language selection license.

The following additional software modules are currently optionally available:

Language selection for interpreting applications

Dual user function

Bluetooth function

As a presidential unit, the screen display can be used to control the conference. You can start and end conferences, view and manage the list of requests to speak, show delegates' speaking times and start and end votes as well as view the results.

As a delegate unit, the touch screen display can be used to display the list of speakers, the voting function and the voting results.

note_phoenix

Specials

With language selection license

Elegant, functional design in solid construction

Bright, high-contrast LCD display with wide viewing angle: shows the functional status of the call station, the battery level, the RF signal strength and the volume setting of the speaker or headphone output. As soon as the microphone is activated, the elapsed speaking time appears in the display

Wireless connection through interference and tap-proof, IEEE 802.11n compatible, digital 5G transmission with 128 bit WPA2 encryption

Operating time with a full battery: up to 15 hours / in standby mode: up to 30 hours

Operation and charging via network cable also possible via wire

Quiet, illuminated mechanical buttons, which are activated according to their function:
- Delegate microphone unit: One microphone activation button
- Presidential microphone unit: One microphone activation button
- Button for assigning other microphone units
- Button for rejecting or switching off other microphone units

Up to 6 wireless conference stations can be activated at the same time (4 delegates and 2 presidents)

Good sound quality thanks to internal speaker

Automatic muting of the built-in speaker when your own microphone station is active (avoiding feedback)

Headphone jack on each side of the call station: easily accessible and easy to use

Optinal accessories: High-quality, screw-on electret condenser microphone with two-color light ring available in different lengths

The battery can easily be removed and charged using an external charger. An empty battery can therefore be quickly replaced with a fully charged battery

An external audio signal can be fed into the control panel and is transmitted to the loudspeaker of the conference unit. The digital AUDIO-LINK technology guarantees good signal transmission and prevents interference from external transmission sources such as cell phones or similar devices

VIP delegate: If all microphone stations are designed as “presidential microphone stations”, you can define up to 32 of these microphone stations as VIP delegates, i.e. up to 6 of these microphone stations can assign themselves at the same time at any time

Very good sound quality and interference-free signal transmission with 48K sampling rate

Hot plug function, i.e. call stations can be added or removed during active operation

Functional modes of the conference unit:
- "OPEN" mode: Each conference unit is activated as soon as the conference unit button is pressed.
- "APPLY" mode: When the talk button is pressed on a conference unit, an activation request is initiated. The microphone on the conference unit lights up green and the presidential conference unit indicates that there is an activation request. The President can accept or reject them. If the President accepts the activation request, the microphone of the affected unit lights up red and the microphone is active.
- "VOICE" mode: As soon as a speaker is spoken to loud enough, the microphone is activated.
- "OVERRIDE" mode: When you press the talk button on a conference unit, the microphone is activated. At the same time, the previously active conference unit is deactivated.

IEC 60914 and GBT 15381-94 standards compliant

Product safety information

Manufacturer information:

VISSONIC Deutschland ist eine Abteilung der MIPRO Germany GmbH
Kochersteinsfelder Str. 73
Baden-Württemberg
Hardthausen, Deutschland, 74239
info@vissonic.de
https://www.vissonic.de

Item information	Value
TECHNOLOGY:	Digital
BRAND:	VISSONIC
MODEL:	wireless
FEATURES:	Touch panel / touch system
SERIES:	VISSONIC CLEACON-M series

note_phoenix

Technical Details

Color	Black
Controls	Mechanical buttons, touchscreen
Dimensions (W x D x H)	218 × 139 × 69 mm (without microphone)
Display	4.3" LCD display
Dynamic range	> 90dB
Frequency response	20 - 20,000 Hz
Harmonic distortion	<0.1%
Headphone impedance	16 ohms
Headphone output	3.5mm stereo jack
Headphone output power	10mW
Material	ABS
Maximum input level	> 100 dB SPL
Maximum power consumption	3.8W
Maximum sound pressure level	> 70 dB SPL at 0.5 m
Microphone sensitivity	-46dBV/Pa
Microphone type	Electret condenser, cardioid
Power supply	Exchangeable 7.2 V Li-ion battery (6,500 mA) or 48 V DC POE via cable
Signal-to-noise ratio	> 96dB
Weight	1.0 kg (without microphone)

note_phoenix

Downloads

VIS-MAW-T Product brochure (9 MB)

VIS-MAW-T Data sheet (1.5 MB)
