VIS-WFD-T

Item no.: 103466852
Category: Conference Systems
Manufacturer:

5G WiFi Wireless Digital Discussion Delegate Unit with integrated battery (Order microphone separately)

679,00 €

incl. 19% VAT , plus

Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

units

note_phoenix

VIS-WFD-T

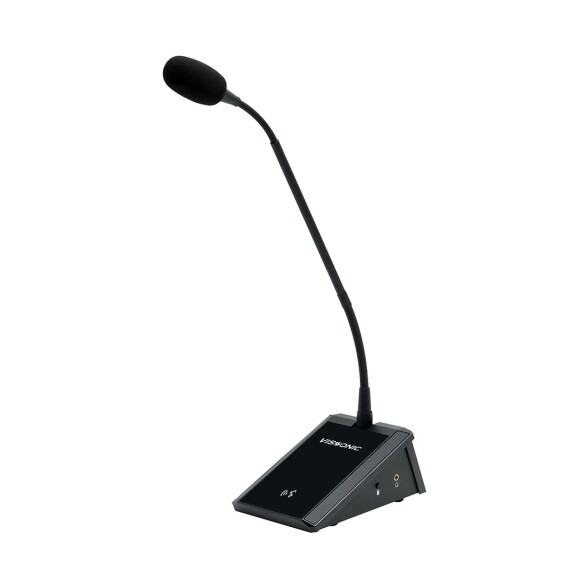

The VIS-WFD-T is a 5G WiFi Wireless Digital Discussion Delegate Unit with integrated battery (order microphone separately).

The wireless microphone unit is clearly designed,very stable and durable.

A light ring on the microphone (optionally available) and the microphone button indicate the operating status.

The VIS-WFD-T microphone unit offers good sound quality thanks to its internal speaker. To prevent feedback, the built-in speaker is automatically muted when the microphone unit is active. An external audio signal can be fed into the control panel and transmitted to the unit's speaker.

The microphone unit offers an elegant, functional design in a solid construction with touch button and simple, intuitive operation.

The silent, illuminated touch-sensitive button is activated according to its function:

The delegate microphone unit has a touch-sensitive microphone activation button.

The wireless connection is established via interference-free and secure, IEEE 802.11n compatible, digital 5G transmission with 128-bit WPA2 encryption. Thanks to the wireless 5G technology, a conference system can be set up and put into operation very quickly.

Digital AUDIO-LINK technology guarantees excellent signal transmission and prevents interference from external sources such as mobile phones or similar devices.

Headphone jacks on each side of the microphone unit are easily accessible and simple to use.

VISSONIC offers a wide selection of optional gooseneck microphones in various lengths that can be combined with the microphone unit. The gooseneck microphone plugs into the unit and is screwed into it. This ensures a secure connection and prevents accidental detachment of the microphone.

Further advantages of the microphone unit are excellent sound quality, interference-free signal transmission, a 48K sampling rate, and a frequency response of 20 Hz to 20 kHz.

The VIS-WFD-T microphone unit offers numerous functions:

"OPEN" mode: Each microphone unit will be activated as soon as the talk button is pressed.
"APPLY" mode: Pressing the talk button on a microphone unit initiates an activation request. The microphone on the microphone unit lights up green, and the chairman's microphone unit indicates that an activation request is pending. The chairman can accept or reject the request. If the chairman accepts the activation request, the microphone on the affected microphone unit lights up red, and the microphone is active.
"VOICE" mode: As soon as a microphone unit is spoken to loudly enough, the microphone is activated.
"OVERRIDE" mode: Pressing the talk button on a microphone unit activates the microphone. At the same time, the previously active microphone unit is deactivated.

Up to 6 microphone units can be activated simultaneously (4 delegates and 2 presidents).

The system automatically detects all connected microphone units. Each connected unit is assigned a unique address (ID) to prevent network conflicts.

The integrated lithium-ion battery offers high charging capacity. Operating time is up to 12 hours on a full charge and up to 24 hours in standby mode.

The microphone unit can be charged using the external charger VIS-WCH3-U (16-way charger). Alternatively, the integrated lithium-ion battery can also be charged via a USB-C port using a standard USB-C power adapter.

Can be combined with the VIS-CDC series HD cameras and the VIS-CATC-A switcher, enabling automatic camera tracking.

Compliant with IEC 60914 and GBT 15381-94 standards.

note_phoenix

Specials

Wireless Digital Discussion Delegate Unit with integrated battery (order microphone separately)

WiFi 5G technology: Interference-proof and secure against eavesdropping, IEEE 802.11n compatible, digital 5G transmission with 128-bit WAP2 encryption

Elegant, functional design in a solid construction

Integrated high-capacity lithium-ion battery

Up to 6 wireless microphone units can be activated simultaneously (4 delegates and 2 presidents)

Digital AUDIO-LINK technology: excellent signal transmission and prevention of interference from external sources

Silent illuminated, touch-sensitive button

Simple, intuitive operation

Large selection of suitable optional gooseneck microphones in various lengths

Operating time: at least 12 hours (with a fully charged battery) / Standby time up to 24 hours

Hot-plug function, i.e. microphone units can be added or removed during active operation

Optional external charger VIS-WCH3-U (16-way charger) avaiable

Headphone jacks

Numerous function modes (OPEN, APPLY, VOICE, OVERRIDE)

Excellent sound quality

48K sampling rate

Frequency response from 20 Hz to 20 kHz

Compliant with IEC 60914 and GBT 15381-94 standards

Product safety information

Manufacturer information:

VISSONIC Deutschland ist eine Abteilung der MIPRO Germany GmbH
Kochersteinsfelder Str. 73
Baden-Württemberg
Hardthausen, Deutschland, 74239
info@vissonic.de
https://www.vissonic.de

Item information	Value
BRAND:	VISSONIC
MODEL:	wireless
FEATURES:	Touch panel / touch system Li-ion battery
TECHNOLOGY:	WiFi Digital 5G transmission
SERIES:	VISSONIC CLEACON-W series

note_phoenix

Technical Details

Type	Digital, wireless delegate microphone unit
Power supply	Integrated 7.2 V DC Li-ion battery (6,500 mA)
Power consumption	3.0 W
Signal-to-noise ratio	> 70 dB
Dimensions (W x D x H)	100 × 160 × 65 mm (without microphone)
Weight	600 g (without microphone)
Headphone output	3.5 mm stereo jack
Headphone impedance	16 Ω
Headphone output power	10 mW
Frequency response	20 - 20,000 Hz
Total harmonic distortion	< 0.1%
Dynamic range	> 90 dB
Maximum sound pressure level	> 70 dB SPL at 0.5 m
Maximum input level	> 125 dB SPL
Controls	Touch-sensitive buttons
Material	ABS
Color	Black

note_phoenix

Downloads

VIS-WFD-T Data sheet (German) (1 MB)
