VIS-CDC-12U

Item no.: 103466795
Category: Conference Systems
Manufacturer:

Controllable camera, 12x optical zoom, 72.5° wide-angle lens, USB 3.0/ HDMI/ LAN output, RS-232 connections (In/Out), RS-485 interface, wall mounting

2.229,00 €

incl. 19% VAT ,

Manufacturers RRP: 2.249,00 €

(Save 0.89%, i.e. 20,00 €)

Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

units

note_phoenix

VIS-CDC-12U

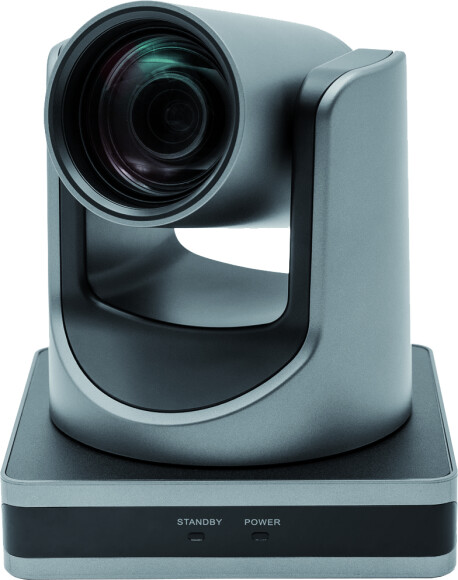

The VISSONIC VIS-CDC-12U is a professional controllable USB HD PTZ camera with 12x optical zoom.

Additional features include a 72.5° wide-angle lens, USB 3.0/HDMI/LAN output, RS-232 ports (in/out), and an RS-485 interface.

A wall mount bracket is included (an optional ceiling mount kit is also available).

This modern USB live streaming PTZ (Pan, Tilt, Zoom) camera is suitable for professional video productions in Full HD.

It can simultaneously output 1080p USB 3.0, HDMI, and IP streams, is equipped with a high-quality lense, and offers flexible live streaming and recording options.

The USB 3.0 output can also transmit audio synchronously.

The VIS-CDC-12U, with its 12x optical zoom and 72.5° field of view with a zoom of 6.90°, is ideal for recording in smaller rooms.

The camera also features a composite output with a resolution of 576i/480i.

The camera offers crystal-clear high-definition 1080p video with a lossless 12x optical zoom, so you can always be close to the action. It streams at a resolution of up to 1080p60.

For maximum flexibility, the camera features multiple video outputs. This allows you to receive 1080p 60fps video from HDMI, USB 3.0, and multiple H.264/H.265/MJPEG IP streams simultaneously.

When streaming via all three main outputs simultaneously, you can select 1080p60 for USB and HDMI, and up to 1080p30 for IP.

Alternatively, you can select 1080p60 for IP, and 1080p30 for USB and HDMI.

Plug & Play USB Video Connection: USB allows you to easily connect the camera to your PC for use with cloud-based video conferencing services such as Skype for Business, GoToMeeting, and WebEX. The camera is backward compatible with USB 2.0 (1920x1080p 30fps, H.264 compression must be enabled).

Real-time RTMP Streaming: The camera can stream directly from the camera to your preferred content delivery network (CDN). Simply connect your CDN's RTMP streaming information to your camera's IP interface, and the stream can begin.

The PTZ cameras are ideal for sporting events, conferences, lecture halls, concerts, corporate applications, and live streaming of worship services in churches.

The camera has RS-232 ports (in/out) and an RS-485 interface. The camera is controlled via VISCA or PELCO-D commands from media control systems (e.g., video production software, a joystick controller) or directly from a VISSONIC conference system.

The camera is equipped with a 3.5mm audio input, allowing you to embed audio via a line-level input on USB 3.0 and Ethernet for IP streaming.

It also offers H.265 "High-Efficiency Codec" IP streaming, as well as H.264 and multicast streaming.

The compact housing can be mounted on tables, walls, and ceilings.

Scope of delivery:

1 x PTZ Camera
1 x Wall mount (ceiling mount optional)
1 x Power supply + power cable
1 x IR remote control
1 x RS-232C cable

All models are available on request also in white color.

note_phoenix

Specials

Open Source 1080p60 Broadcast PTZ Camera

12x optical zoom for short, wide spaces

Composite output (576i/480i)

Control via RS-232, RS-485, or LAN

Audio line-in for IP streaming and USB

10 presets via IR remote control

255 presets via serial or IP control (LAN/WAN)

Bright light with wide dynamic range

72.5° wide-angle lens at 12x zoom

Simultaneous USB, HDMI, and IP streaming

2D and 3D noise reduction

H.264, H.265, and MJPEG streaming via RJ45 LAN port

Power supply 12 VDC

RTMP and RTSP IP streaming

Ideal for sporting events, conferences, lecture halls, concerts, corporate applications and church live streaming

Product safety information

Manufacturer information:

VISSONIC Deutschland ist eine Abteilung der MIPRO Germany GmbH
Kochersteinsfelder Str. 73
Baden-Württemberg
Hardthausen, Deutschland, 74239
info@vissonic.de
https://www.vissonic.de

BRAND:	VISSONIC
SERIES:	VISSONIC VIS-CDC series

note_phoenix

Technical Details
PAN / TILT

Pan movement	+/- 170°
Tilt Up	Up: 90°, Down: 30°
Presets	10 via IR (255 via serial or IP)

CAMERA & LENS

Video sensor	1/2.7" CMOS, 2.07 megapixels
Frame rate	1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25
Frame rate (CVBS)	576i/30, 480i/30
Focal length	F3.50mm-42.3mm, F1.8-F2.8
Zoom	12x optical: max. angle of view: 72.5°
Minimum illumination	0.5 lux at F1.8, AGC ON
Shutter speed	1/30s - 1/10.000s
SNR	>55 dB
Vertical Flip & Mirror	Supported
Zoom	- 12 x optical: Horizontal angle of view: 6.90° (telephoto) to 72.5° (wide-angle); - 12x optical: Vertical angle of view: 3.90° (telephoto) to 44.8° (wide-angle)
Operating environment	Indoor

BACKBOARD

Video output	HDMI, USB, IP streaming, CVBS
Network connection	RJ45
Audio interface	Line in 3.5mm (IP streaming and USB only)
Control	RS-232, RS-485, LAN
Protocols	VISCA, PELCO-D, PELCO-P
Transmission rate	2400/4800/9600 bits
Power supply	JEITA power adapter (DC IN) 12V)
USB 2.0 port	for future use

POWER

Power adapter	12W (max)
Input voltage	12V DC (10.8 - 13.0V DC)

PHYSICAL DATA

Dimensions (W x H x D)	142 x 164 x 169 mm (198 mm maximum height when tilted)
Weight	approx. 1.41 kg

note_phoenix

Downloads

VIS-CDC-12U Datenblatt (2,4 MB)

VIS-CDC-12U Bedienungsanleitung (12,1 MB)

VIS-CDC-12U Fernbedienung Anleitung (1,3 MB)
